Specifications

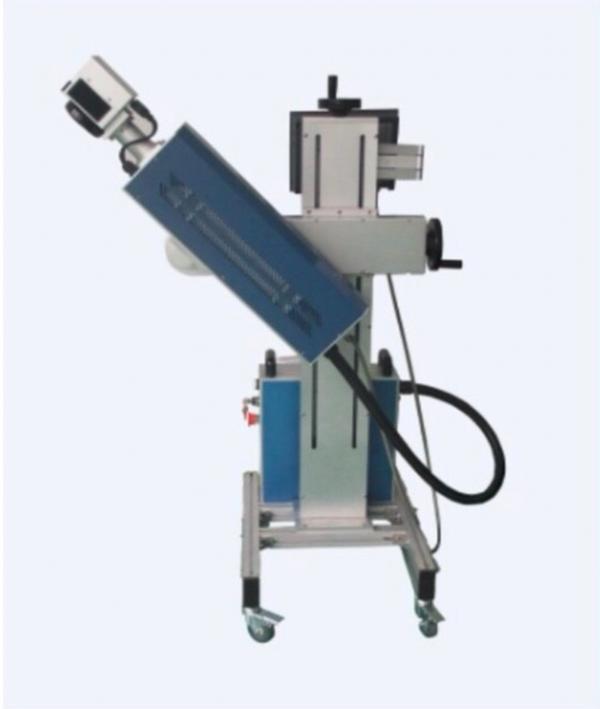

PCD12L

Laser

Laser

CRD CO2 laser

Wavelength

10.55-10.64um

Spot size

1.8mm

Max output power

12W

Laser frequency

0kHz~20 kHz

Power stability

±5%

Cooling systems

Air-cooling

Marking head

Min. linear speed

≥10000mm/s

Marking speed

800Character/s (Roma, 1mm)

Assembly lines speed

60m/min

Coding qty/Hour

40000 p/Hour

Resolution ratio

10μm

Repeatability

≤20μm

Max. linear width

≤50μm

Marking depth

≤1 mm

Max. character size

≤0.5mm
